Dimension

 AM013

AM-S1
Dimension 1-Stage 2-Stage 3-Stage 4-Stage 5-Stage
Length         L8 15 21 27 33 39
Mounting hole PCD         C13 10
Mounting hole O.D.         C23 1.8
Number of mounting hole         C233 3
Motor shaft O.D.         C33H7 Ratio O.D. Ratio O.D. Ratio O.D. Ratio O.D. Ratio O.D.
4.1 ≤ 1.5 17 ≤ 1.5 67 ≤ 1.5 275 ≤ 1.5 1119 ≤ 1.5
5.1 ≤ 1.5 26 ≤ 1.5 131 ≤ 1.5 664 ≤ 1.5 3373 ≤ 1.5
Motor Shaft Length         C43 8.1
Motor Pilot O.D.         C53 6
Motor Pilot Depth         C63 2.5
Motor adapter O.D.         C73 16
Motor adapter Thickness         C83 2.1
Total Length         C93 28.1 34.1 40.1 46.1 52.1

3. C1~C9 are motor specific dimensions (metric std shown). Refer to apexdyna.com and AM Design Tool to view your specific motor mounting system.

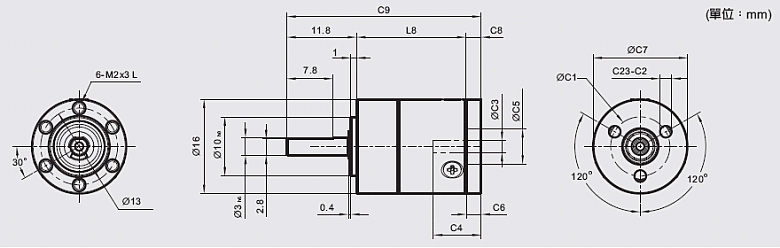

AM016

AB-S1
Dimension 1-Stage 2-Stage 3-Stage 4-Stage 5-Stage
Length         L8 18.5 24 29.5 35 40.5
Mounting hole PCD         C13 10
Mounting hole O.D.         C23 1.8
Number of mounting hole         C233 3
Motor shaft O.D.         C33H7 Ratio O.D. Ratio O.D. Ratio O.D. Ratio O.D. Ratio O.D.
4.4 ≤ 2 19 ≤ 2 84 ≤ 2 370 ≤ 2 1621 ≤ 2
5.4 ≤ 1.5 24 ≤ 2 104 ≤ 2 455 ≤ 2 1996 ≤ 2
- - 29 ≤ 1.5 128 ≤ 2 561 ≤ 2 2458 ≤ 2
- - - - 157 ≤ 1.5 690 ≤ 1.5 3027 ≤ 1.5
- - - - - - 850 ≤ 1.5 3728 ≤ 1.5
- - - - - - - - 4592 ≤ 1.5
Motor Shaft Length         C43 8.1
Motor Pilot O.D.         C53 6
Motor Pilot Depth         C63 2.5
Motor adapter O.D.         C73 16
Motor adapter Thickness         C83 2.6
Total Length         C93 32.9 38.4 43.9 49.4 51.9

3. C1~C9 are motor specific dimensions (metric std shown). Refer to apexdyna.com and AM Design Tool to view your specific motor mounting system.

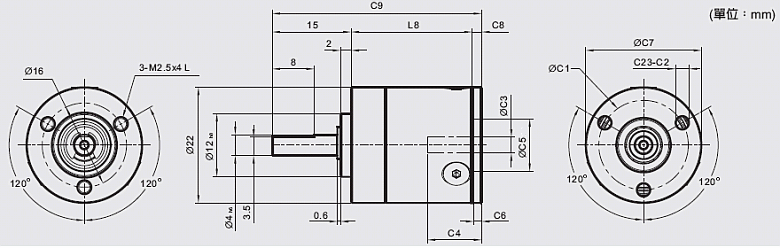

AM022

AB-S1
Dimension 1-Stage 2-Stage 3-Stage
Length         L8 23 31.5 40
Mounting hole PCD         C13 17
Mounting hole O.D.         C23 2.2
Number of mounting hole         C233 3
Motor shaft O.D.         C33H7 Ratio O.D. Ratio O.D. Ratio O.D. Ratio O.D. Ratio O.D.
4 ≤ 4 16 ≤ 4 49 ≤ 1.5 64 ≤ 4 196 ≤ 4
5 ≤ 3 20 ≤ 3 - - 80 ≤ 4 245 ≤ 3
7 ≤ 1.5 28 ≤ 1.5 - - 112 ≤ 4 343 ≤ 1.5
9 ≤ 1 35 ≤ 1.5 - - 140 ≤ 4 - -
Motor Shaft Length         C43 10.3
Motor Pilot O.D.         C53 10
Motor Pilot Depth         C63 1.5
Motor adapter O.D.         C73 22
Motor adapter Thickness         C83 1.8
Total Length         C93 39.8 48.3 56.8

3. C1~C9 are motor specific dimensions (metric std shown). Refer to apexdyna.com and AM Design Tool to view your specific motor mounting system.

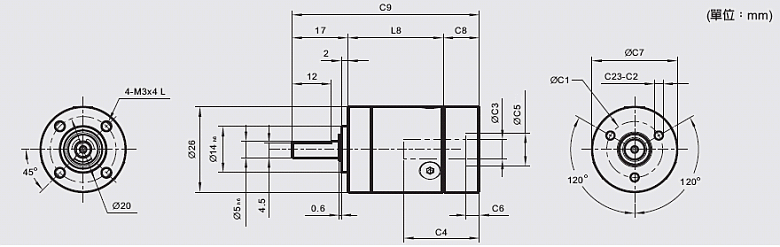

AM026

AB-S1
Dimension 1-Stage 2-Stage 3-Stage
Length         L8 29 40.5 52
Mounting hole PCD         C13 17
Mounting hole O.D.         C23 2.2
Number of mounting hole         C233 3
Motor shaft O.D.         C33H7 Ratio O.D. Ratio O.D. Ratio O.D. Ratio O.D. Ratio O.D.
3.5 ≤ 6 12.25 ≤ 6 46 ≤ 2.5 81.37 ≤ 4 216 ≤ 2.5
4.33 ≤ 4 18.78 ≤ 4 - - 112.67 ≤ 4 276 ≤ 2.5
6 ≤ 2.5 26 ≤ 4 - - 143.96 ≤ 4 352.67 ≤ 2.5
7.67 ≤ 1.5 33.22 ≤ 4 - - 199.33 ≤ 4 - -
Motor Shaft Length         C43 23
Motor Pilot O.D.         C53 10
Motor Pilot Depth         C63 4
Motor adapter O.D.         C73 26
Motor adapter Thickness         C83 11
Total Length         C93 57 68.5 80

3. C1~C9 are motor specific dimensions (metric std shown). Refer to apexdyna.com and AM Design Tool to view your specific motor mounting system.

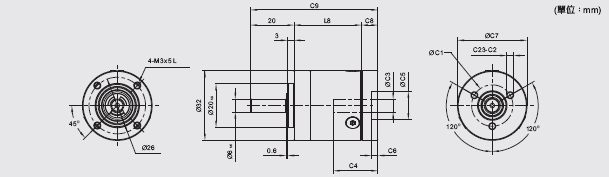

AM032

AB-S1
Dimension 1-Stage 2-Stage 3-Stage
Length         L8 31 43 55
Mounting hole PCD         C13 19
Mounting hole O.D.         C23 2.7
Number of mounting hole         C233 3
Motor shaft O.D.         C33H7 Ratio O.D. Ratio O.D. Ratio O.D. Ratio O.D. Ratio O.D. Ratio O.D.
4 ≤ 6 16 ≤ 6 36 ≤ 5 64 ≤ 6 144 ≤ 6 288 ≤ 5
4.5 ≤ 5 18 ≤ 6 41.6 ≤ 4 72 ≤ 6 175.78 ≤ 5 332.8 ≤ 4
5.2 ≤ 4 20.8 ≤ 6 50 ≤ 3 81 ≤ 5 200 ≤ 6 400 ≤ 3
6.25 ≤ 3 25 ≤ 6 64 ≤ 2 100 ≤ 6 225 ≤ 5 512 ≤ 2
8 ≤ 2 32 ≤ 6 - - 130 ≤ 6 256 ≤ 6 - -
Motor Shaft Length         C43 20.6
Motor Pilot O.D. C53 13
Motor Pilot Depth         C63 3
Motor adapter O.D.         C73 32
Motor adapter Thickness         C83 7.6
Total Length         C93 58.6 70.6 82.6

3. C1~C9 are motor specific dimensions (metric std shown). Refer to apexdyna.com and AM Design Tool to view your specific motor mounting system.
