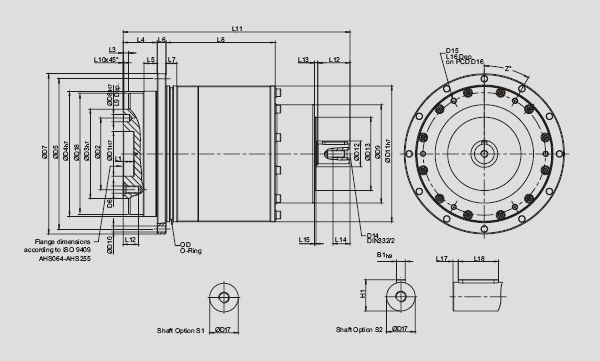

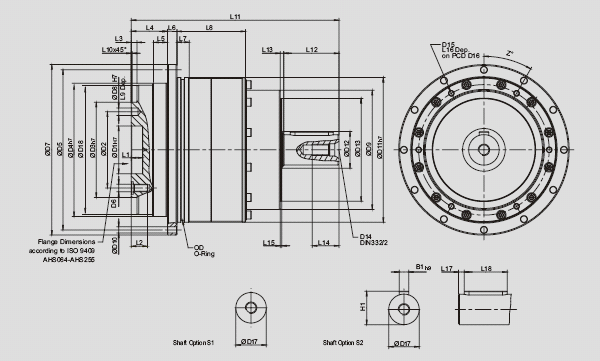

產品尺寸

ADS047 ADS064 ADS090 ADS110 ADS140 ADS200 ADS255         D1H7 12 20 31.5 40 50 80 100         D2 20 31.5 50 63 80 125 140         D3h7 28 40 63 80 100 160 180         D4h7 47 64 90 110 140 200 255         D5 67 79 109 135 168 233 280         D6 4 X M3 X 0.5P 7 X M5 X 0.8P 7 X M6 X 1P 11 X M6 X 1P 11 X M8 X 1.25P 11 X M10 X 1.5P 12 X M16 X 2P         D7 72 86 118 145 179 247 300         D8H7 3 5 6 6 8 10 12         D9 43 48 68 86 110 132 182         D10 8 X 3.4 8 X 4.5 8 X 5.5 8 X 5.5 12 X 6.6 12 X 9 16 X 13.5         D11h7 60 70 95 120 152 212 255         D12 22 22 22 22 30 40 75         D13 37 37 50 62 82 108 145         D14 M4 x 0.7P M4 x 0.7P M4 x 0.7P M5 x 0.8P M8 x 1.25P M12 x 1.75P M16 x 2P         D15 M3 x 0.5P M3 x 0.5P M4 x 0.7P M5 x 0.8P M6 x 1P M8 x 1.25P M10 x 1.5P         D16 51.5 61.5 84 107 137 193 235         D17k6 11 11 14 16 22 32 40         D18 46.2 63.2 89.2 109.2 139.2 199.12 254.2         L1 4 8 12 12 12 16 20         L2 6.5 8 13.5 13.5 17 22.5 30.5         L3 3 3 6 6 6 8 12         L4 19.5 19.5 30 29 38 50 66         L5 7 7 10 10 14.6 15 20         L6 4 4 7 8 10 12 18         L7 5 7.7 8 10 12 15 20         L8 62.5 63.5 67 82 122 79.5 177         L9 4 6 7 7 7 10 10         L10 0.5 0.5 1 1 1 1 1         L11 119.5 125.5 158.5 188 253.5 314.5 419.5         L12 18 18 22 28 36 58 82         L13 2.5 2.5 2.5 3.5 3.5 3.5 4.5         L14 10 10 10 12.5 19 28 36         L15 1.5 1.5 1.5 1.5 1.5 1.5 1.5         L16 5.5 5.5 7 9 11 14 18         L17 2 2 2 3 3 6 6         L18 14 14 18 22 28 45 70         B1h9 4 4 5 5 6 10 12         H1 12.5 12.5 16 18 24.5 35 43         OD 56 X 2 66 X 2 90 X 3 110 X 3 145 X 3 200 X 5 238 X 5         V 4 4 4 4 6 6 6         Z 45 45 45 45 30 30 30
