1-stage
AT-H Series
Overview
Specification

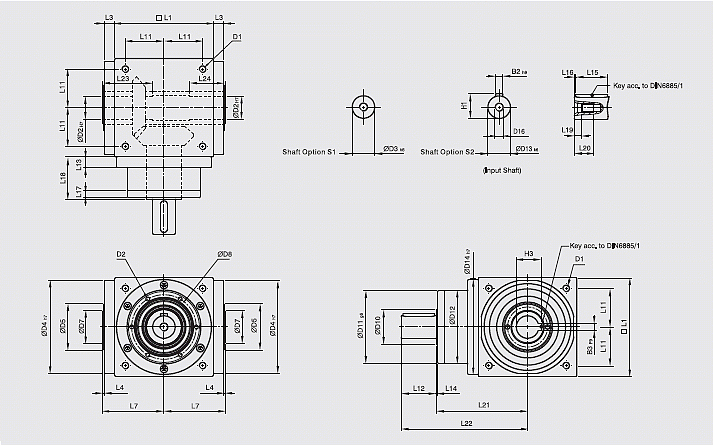

Dimension
1-stage( Ratio i = 1 ~ 5 )
AT-L1-S1
AT065H
AT075H
AT090H
AT110H
AT140H
AT170H
AT210H
AT240H
AT280H
D1
M4
M6
M6
M8
M10
M12
M16
M16
M16
D2
kH7
13
14
18
22
32
40
50
55
60
D4
kh7
63
73
88
108
135
165
205
235
275
D5
31
35
43
53
68
83
104
124
144
D7
21
22
28
33
47
55
75
85
110
D8
53
62
76
95
92
114
142
160
176
D9
4xM4xL7
4xM5xL8
4xM5xL8
6xM6xL10
6xM6xL10
6xM8xL12.5
6xM8xL12.5
6xM8xL12.5
6xM10xL15
D10
15.4
20.4
25.8
35.8
49.8
59.3
79.3
92.3
102.3
D11
kg6
62.9
72.9
87
107
103
127
158
178
198
D12
62
72
86
106
104
128
160
180
200
D13
kk6
13
16
18
22
32
40
50
55
60
D14
kh7
63
73
88
108
135
165
205
235
275
D16
M4
M5
M5
M8
M12
M16
M16
M16
M20
L1
65
75
90
110
140
170
210
240
280
L3
13
14.5
15
15
15
15
20
25
25
L4
2
2
2
2
2
2
2
2
2
L7
47.5
54
62
72
87
102
127
147
167
L11
27
30
36
44
55
67
85
95
110
L12
19.5
30
35
40
50
60
75
85
110
L13
13
15
15
15
15
15
20
25
25
L14
2
2
2
2
2
2
2
2
2
L15
16
25
28
32
45
50
70
80
100
L16
2
2.5
3.5
4
2.5
5
2.5
2.5
5
L17
6
8
8
8
10
10
10
10
10
L18
43
52.5
55
60
60
70
90
105
120
L19
4.5
4.8
4.8
7.2
10
12
12
12
15
L20
10
12.5
12.5
19
28
36
36
36
42
L21
75.5
90
100
115
130
155
195
225
260
L22
95
120
135
155
180
215
270
310
370
L23
40
47
52
53
70
80
95
115
115
L24
30
32
35
35
50
55
65
80
80
B2
kh9
5
5
6
6
10
12
14
16
18
B3
kP9
5
5
6
6
10
12
14
16
18
H2
15
18
20.5
24.5
35
43
53.5
59
64
H3
15.3
16.3
20.8
24.8
35.3
43.3
53.8
59.3
64.4
