       1-stage     2-stage   2-stage For motor with large shaft diameters

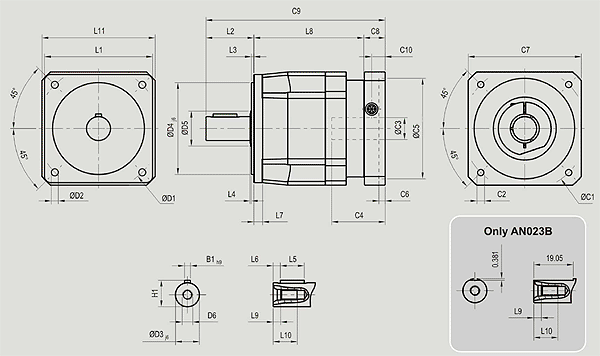

 1-stage , Ratio i = 5 , 10

mm( inch )


AN-S1
  AN023 AN023B AN034 AN034B
        D1 66.675 ( 2.625 ) 66.675 ( 2.625 ) 98.425 ( 3.875 ) 98.425 ( 3.875 )
        D2 5.6 5.6 5.6 5.6
        D3 j6 12.7 ( 0.500 ) 9.525 ( 0.375 ) 19.05 ( 0.750 ) 12.7 ( 0.500 )
        D4 j6 38.1 ( 1.500 ) 38.1 ( 1.500 ) 73.025 ( 2.875 ) 73.025 ( 2.875 )
        D5 22 22 30 30
        D6 M5x0.8P M4x0.7P M8x1.25P M5x0.8P
        L1 60 60 86 86
        L2 31.8 ( 1.252 ) 25.4 ( 1.000 ) 38.1 ( 1.500 ) 31.8 ( 1.252 )
        L3 2 2 2 2
        L4 1 1 1 1
        L5 19.05 ( 0.750 ) - 19.05 ( 0.750 ) 19.05 ( 0.750 )
        L6 3.8 ( 0.150 ) - 5.7 ( 0.224 ) 3.8 ( 0.150 )
        L7 6 6 7 7
        L8 75.5 75.5 120.5 120.5
        L9 4.8 4.5 7.2 4.8
        L10 12.5 10 19 12.5
        L11 60 60 90 90
        C1 4 66.675 ( 2.625 ) 66.675 ( 2.625 ) 66.675 ( 2.625 ) 66.675 ( 2.625 )
        C2 4 M5x0.8P M5x0.8P M5x0.8P M5x0.8P
        C3 4  ≤11 / ≤12 ≤11 / ≤12 ≤14 / ≤16 ≤14 / ≤16
        C4 4 32 ( 1.260 ) 32 ( 1.260 ) 40 ( 1.575 ) 40 ( 1.575 )
        C5 4 38.15 ( 1.502 ) 38.15 ( 1.502 ) 38.15 ( 1.502 ) 38.15 ( 1.502 )
        C6 4 3.5 ( 0.138 ) 3.5 ( 0.138 ) 4 ( 0.157 ) 4 ( 0.157 )
        C7 4 55 ( 2.165 ) 55 ( 2.165 ) 58 ( 2.283 ) 58 ( 2.283 )
        C8 4 36.5 ( 1.437 ) 36.5 ( 1.437 ) 25 ( 0.984 ) 25 ( 0.984 )
        C9 4 143.8 ( 5.661 ) 137.4 ( 5.409 ) 183.6 ( 7.228 ) 177.3 ( 6.980 )
        C10 4 15.75 ( 0.620 ) 15.75 ( 0.620 ) 19.5 ( 0.768 ) 19.5 ( 0.768 )
        B1 h9 3.175 ( 0.125 ) - 4.763 ( 0.188 ) 3.175 ( 0.125 )
        H1 14.125 ( 0.556 ) - 21.113 ( 0.831 ) 14.125 ( 0.556 )


3. C1~C10 are motor specific dimensions (nema std shown).
* AN023M1 offers C3 ≤16 option.
* AN023BM1 offers C3 ≤16 option.
* AN034M1 offers C3 ≤24 option.
* AN034BM1 offers C3 ≤24 option.

Top

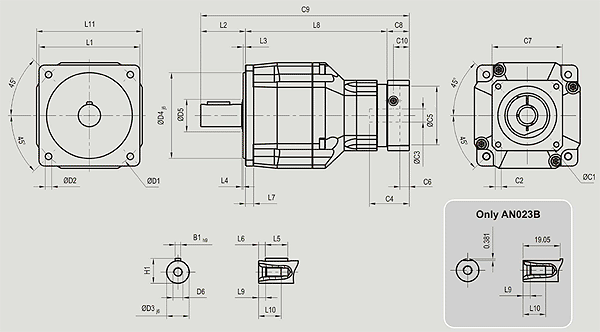

2-stage , Ratio i = 25 ,50 , 100

mm( inch )
AN-S2
  AN023 AN023B AN034 AN034B
        D1 66.675 ( 2.625 ) 66.675 ( 2.625 ) 98.425 ( 3.875 ) 98.425 ( 3.875 )
        D2 5.6 5.6 5.6 5.6
        D3 j6 12.7 ( 0.500 ) 9.525 ( 0.375 ) 19.05 ( 0.750 ) 12.7 ( 0.500 )
        D4 j6 38.1 ( 1.500 ) 38.1 ( 1.500 ) 73.025 ( 2.875 ) 73.025 ( 2.875 )
        D5 22 22 30 30
        D6 M5x0.8P M4x0.7P M8x1.25P M5x0.8P
        L1 60 60 86 86
        L2 31.8 ( 1.252 ) 25.4 ( 1.000 ) 38.1 ( 1.500 ) 31.8 ( 1.252 )
        L3 2 2 2 2
        L4 1 1 1 1
        L5 19.05 ( 0.750 ) - 19.05 ( 0.750 ) 19.05 ( 0.750 )
        L6 3.8 ( 0.150 ) - 5.7 ( 0.224 ) 3.8 ( 0.150 )
        L7 6 6 7 7
        L8 75.5 75.5 120.5 120.5
        L9 4.8 4.5 7.2 4.8
        L10 12.5 10 19 12.5
        L11 60 60 90 90
        C1 4 66.675 ( 2.625 ) 66.675 ( 2.625 ) 66.675 ( 2.625 ) 66.675 ( 2.625 )
        C2 4 M5x0.8P M5x0.8P M5x0.8P M5x0.8P
        C3 4  ≤11 / ≤12 ≤11 / ≤12 ≤14 / ≤16 ≤14 / ≤16
        C4 4 32 ( 1.260 ) 32 ( 1.260 ) 40 ( 1.575 ) 40 ( 1.575 )
        C5 4 38.15 ( 1.502 ) 38.15 ( 1.502 ) 38.15 ( 1.502 ) 38.15 ( 1.502 )
        C6 4 3.5 ( 0.138 ) 3.5 ( 0.138 ) 4 ( 0.157 ) 4 ( 0.157 )
        C7 4 55 ( 2.165 ) 55 ( 2.165 ) 58 ( 2.283 ) 58 ( 2.283 )
        C8 4 36.5 ( 1.437 ) 36.5 ( 1.437 ) 25 ( 0.984 ) 25 ( 0.984 )
        C9 4 143.8 ( 5.661 ) 137.4 ( 5.409 ) 183.6 ( 7.228 ) 177.3 ( 6.980 )
        C10 4 15.75 ( 0.620 ) 15.75 ( 0.620 ) 19.5 ( 0.768 ) 19.5 ( 0.768 )
        B1 h9 3.175 ( 0.125 ) - 4.763 ( 0.188 ) 3.175 ( 0.125 )
        H1 14.125 ( 0.556 ) - 21.113 ( 0.831 ) 14.125 ( 0.556 )


4. C1~C10 are motor specific dimensions (Nema std shown).
* AN023M1 offers C3 ≤12 option.
* AN023BM1 offers C3 ≤12 option.
* AN034M1 offers C3 ≤16 option.
* AN034BM1 offers C3 ≤16 option.

Top

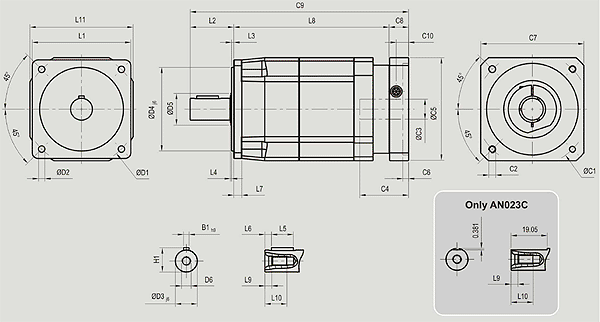

2-stage , Ratio i = 25 ,50 , 100 (For motor with large shaft diameters)

mm( inch )
AN-S3
  AN023A AN023C AN034A AN034C
        D1 66.675 ( 2.625 ) 66.675 ( 2.625 ) 98.425 ( 3.875 ) 98.425 ( 3.875 )
        D2 5.6 5.6 5.6 5.6
        D3 j6 12.7 ( 0.500 ) 9.525 ( 0.375 ) 19.05 ( 0.750 ) 12.7 ( 0.500 )
        D4 j6 38.1 ( 1.500 ) 38.1 ( 1.500 ) 73.025 ( 2.875 ) 73.025 ( 2.875 )
        D5 22 22 30 30
        D6 M5x0.8P M4x0.7P M8x1.25P M5x0.8P
        L1 60 60 86 86
        L2 31.8 ( 1.252 ) 25.4 ( 1.000 ) 38.1 ( 1.500 ) 31.8 ( 1.252 )
        L3 2 2 2 2
        L4 1 1 1 1
        L5 19.05 ( 0.750 ) - 19.05 ( 0.750 ) 19.05 ( 0.750 )
        L6 3.8 ( 0.150 ) - 5.7 ( 0.224 ) 3.8 ( 0.150 )
        L7 6 6 7 7
        L8 101.5 101.5 135.5 135.5
        L9 4.8 4.5 7.2 4.8
        L10 12.5 10 19 12.5
        L11 60 60 90 90
        C1 4 66.675 ( 2.625 ) 66.675 ( 2.625 ) 98.425 ( 3.875 ) 98.425 ( 3.875 )
        C2 4 M5x0.8P M5x0.8P M5x0.8P M5x0.8P
        C3 4  ≤14 / ≤16 ≤14 / ≤16 ≤19 / ≤24 ≤19 / ≤24
        C4 4 40 ( 1.575 ) 40 ( 1.575 ) 40 ( 1.575 ) 40 ( 1.575 )
        C5 4 38.15 ( 1.502 ) 38.15 ( 1.502 ) 73.08 ( 2.877 ) 73.08 ( 2.877 )
        C6 4 4 ( 0.157 ) 4 ( 0.157 ) 4 ( 0.157 ) 4 ( 0.157 )
        C7 4 58 ( 2.283 ) 58 ( 2.283 ) 85 ( 3.346 ) 85 ( 3.346 )
        C8 4 25 ( 0.984 ) 25 ( 0.984 ) 17 ( 0.669 ) 17 ( 0.669 )
        C9 4 158.3 ( 6.232 ) 151.9 ( 5.980 ) 190.6 ( 7.504 ) 184.3 ( 7.256 )
        C10 4 19.5 ( 0.768 ) 19.5 ( 0.768 ) 10.75 ( 0.423 ) 10.75 ( 0.423 )
        B1 h9 3.175 ( 0.125 ) - 4.763 ( 0.188 ) 3.175 ( 0.125 )
        H1 14.125 ( 0.556 ) - 21.113 ( 0.831 ) 14.125 ( 0.556 )


4. C1~C10 are motor specific dimensions (Nema std shown).
* AN023AM1 offers C3 ≤16 option.
* AN023CM1 offers C3 ≤16 option.
* AN034AM1 offers C3 ≤24 option.
* AN034CM1 offers C3 ≤24 option.

Top
