     1-stage    2-stage    3-stage
 AT-FC Series

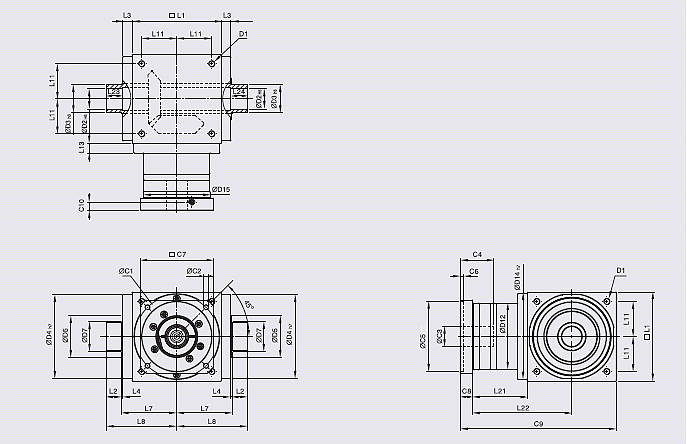

 1-stage( Ratio i = 1 ~ 5 )

AT-FL1-S1
  AT065FC AT075FC AT090FC AT110FC AT140FC AT170FC AT210FC AT240FC AT280FC
       D1 M4 M6 M6 M8 M10 M12 M16 M16 M16
       D2 H6 13 14 18 22 32 40 50 55 60
       D3 h8 16 16 22 25 44 50 62 68 75
       D4 h7 63 73 88 108 135 165 205 235 275
       D12 62 72 86 106 104 128 160 180 200
       D14 h7 63 73 88 108 135 165 205 235 275
       D15 62.9 72.9 87 107 105 130 158 178 198
       D17 26 26 36 38 61 70 86 86 100
       D18 41 41 50 50 80 90 110 115 138
       L1 65 75 90 110 140 170 210 240 280
       L2 14 14 18 18 24 26 29 29 30.5
       L3 13 14.5 15 15 15 15 20 25 25
       L4 2 2 2 2 2 2 2 2 2
       L7 47.5 54 62 72 87 102 127 147 167
       L8 66 72.5 85 95 116.5 113.5 161.5 181.5 205
       L11 27 30 36 44 55 67 85 95 110
       L13 13 15 15 15 15 15 20 25 25
       L21 49 60.5 63 69.5 85.5 95 130 144.5 135
       L22 81.5 98 108 124.5 155.5 180 235 264.5 275
       L23 15 15 20 20 26 28 31 31 32.5
       L24 15 15 20 20 26 28 31 31 32.5
       L25 15 15 19.5 19.5 25.5 27.5 30.5 30.5 32.5
       L26 18.5 18.5 23 23 29.5 31.5 34.5 34.5 38
       C1 12 46 70 100 100 130 165 215 215 235
       C2 12 M4 M5 M6 M6 M8 M10 M12 M12 M12
       C3 12 ≤11 / ≤12 ≤14 / ≤15.875 / ≤16 ≤19 ≤24 ≤32 ≤38 ≤42 ≤48 ≤55
       C4 12 30 34 40 40 50 60 85 85 116
       C5 12G6 30 50 80 80 110 130 180 180 200
       C6 12 3.5 8 4 4 5 6 6 6 6
       C7 12 42 60 90 90 115 142 190 190 220
       C8 12 19.5 19 17 17 19.5 22.5 29 29 63
       C9 12 133.5 154.5 170 196.5 245 287.5 369 413.5 478
       C10 12 13.25 13.5 10.75 10.75 13 15 20.75 20.75 53.5

12. C1~C10 are motor specific dimensions (metric std shown).
*AT065-FCM1 offers C3 <= 12 option.
*AT075-FCM1 offers C3 <= 16 option.
*AT075-FCM2 offers C3 <= 15.875 option.

Top

2-stage( Ratio i = 7 ~ 50 )

AT-FC-S2
  AT065FC AT075FC AT090FC AT110FC AT140FC AT170FC AT210FC AT240FC AT280FC
       D1 M4 M6 M6 M8 M10 M12 M16 M16 M16
       D2 H6 13 14 18 22 32 40 50 55 60
       D3 h8 16 16 22 25 44 50 62 68 75
       D4 h7 63 73 88 108 135 165 205 235 275
       D12 62 72 86 106 104 128 160 180 200
       D14 h7 63 73 88 108 135 165 205 235 275
       D15 62.9 72.9 87 107 106 127 158 178 198
       D17 26 26 36 38 61 70 86 86 100
       D18 41 41 50 50 80 90 110 115 138
       L1 65 75 90 110 140 170 210 240 280
       L2 14 14 18 18 24 26 29 29 30.5
       L3 13 14.5 15 15 15 15 20 25 25
       L4 2 2 2 2 2 2 2 2 2
       L7 47.5 54 62 72 87 102 127 147 167
       L8 66 72.5 85 95 116.5 133.5 161.5 181.5 205
       L11 27 30 36 44 55 67 85 95 110
       L13 13 15 15 15 15 15 20 25 25
       L21 75 84.5 99 122 144.5 157.5 206.5 239 248
       L22 107.5 122 144 177 214.5 242.5 311.5 359 388
       L23 15 15 20 20 26 28 31 31 32.5
       L24 15 15 20 20 26 28 31 31 32.5
       L25 15 15 19.5 19.5 25.5 27.5 30.5 30.5 32.5
       L26 18.5 18.5 23 23 29.5 31.5 34.5 34.5 38
       C1 13 46 46 70 100 100 100 130 165 165
       C2 13 M4 M4 M5 M6 M6 M6 M8 M10 M10
       C3 13 ≤12 ≤12 ≤16 ≤24 ≤24 ≤24 ≤32 ≤38 ≤38
       C4 13 30 30 34 40 40 40 50 60 60
       C5 13 30 30 50 80 80 80 110 130 130
       C6 13 3.5 3.5 8 4 4 4 5 6 6
       C7 13 42 42 60 92 92 92 115 142 142
       C8 13 21.5 21.5 21.5 20 20 20 24 31 31
       C9 13 161.5 181 210.5 252 304.5 347.5 440.5 510 559
       C10 13 14.5 14.5 15.5 13 13 13 16 21 21

13. C1~C10 are motor specific dimensions (metric std shown).

Top

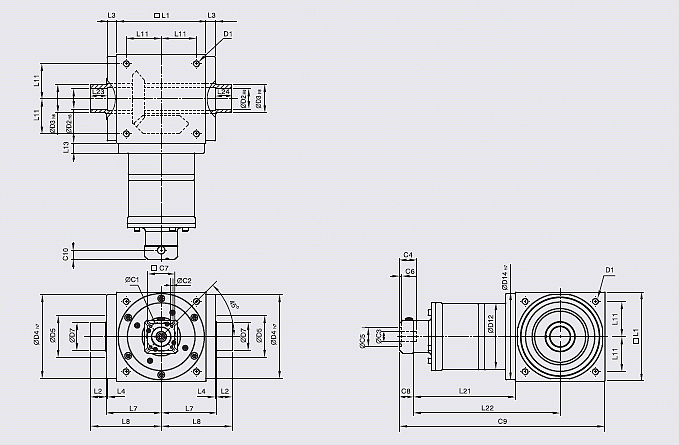

3-stage( Ratio i = 75 ~ 500 )

AT-FC-S3
  AT110FC AT140FC AT170FC AT210FC AT240FC AT280FC
       D1 M8 M10 M12 M16 M16 M16
       D2 H6 22 32 40 50 55 60
       D3 h8 25 44 50 62 68 75
       D4 h7 108 135 165 205 235 275
       D12 106 104 128 160 180 200
       D14 h7 108 135 165 205 235 275
       D15 107 106 127 158 178 198
       D17 38 61 70 86 86 100
       D18 50 80 90 110 115 138
       L1 110 140 170 210 240 280
       L2 18 24 26 29 29 30.5
       L3 15 15 15 20 25 25
       L4 2 2 2 2 2 2
       L7 72 87 102 127 147 167
       L8 95 116.5 133.5 161.5 181.5 205
       L11 44 55 67 85 95 110
       L13 15 15 15 20 25 25
       L21 136.5 159.5 183.5 226 269 278
       L22 191.5 229.5 268.5 331 389 418
       L23 20 26 28 31 31 32.5
       L24 20 26 28 31 31 32.5
       L25 19.5 25.5 27.5 30.5 30.5 32.5
       L26 23 29.5 31.5 34.5 34.5 38
       C1 14 46 46 70 70 100 100
       C2 14 M4 M4 M5 M5 M6 M6
       C3 14 ≤12 ≤12 ≤16 ≤16 ≤24 ≤24
       C4 14 30 30 34 34 40 40
       C5 14 30 30 50 50 80 80
       C6 14 3.5 3.5 8 8 4 4
       C7 14 42 42 60 60 92 92
       C8 14 21.5 21.5 21.5 21.5 20 20
       C9 14 268 321 375 457.5 529 578
       C10 14 14.5 14.5 15.5 15.5 13 13

14. C1~C10 are motor specific dimensions (metric std shown).
