| Helical gearing increases the tooth to tooth contact ratio by as much as
33%,Benefits include increased torque capacity , ultimate smoothness , lower backlash and decreased noise. The helix angle is carefully chosen to gain these advantages while not producing excessive axial forces. |
|
|
|
|
| |
| Triple-split collet and dynamically balanced set collar clamping system for efficient power transmission. Perfect concentricity from one-piece sun gear / input shaft reduces backlash and allows higher input speeds. |
|
|
|
|
| |
| Patented planet carrier design mounts the sun gear bearing directly into the planet carrier in order to eliminate misalignment. This exclusive design offers great advantages in decreased noise, vibration and transmission errors and losses. |
|
|
|
|
| |
| One-piece carrier and output housing ensure 100% concentricity and alignment of all the rotating components. One-piece construction increases strength, rigidity and system reliability. |
|
|
|
|
| |
| Lubrication
by synthetic Nyogel 792D grease for
smooth operation over the whole service life,
Sealed to IP65
standard for ingress protection and can be
mounted in any orientation. |
|
|
|
|
| |
| Our In-house plasma nitriding treatment process allows the hardness of the gear flank to reach over 900Hv for superior wear resistance and still maintain a core hardness of 30HRc for toughness and resistance to shock loading |
|
|
|
|
| |
| Industry-leading gear performance is attained with our
HeliTopo technology.
Ease off of the tooth profile and lead crowning optimizes the gear mesh under load and achieves maximum tooth surface contact. |
|
|
|
|
| |
| Planet gears rotate on
solid uncaged needle roller bearings for increased stiffness and the maximum number of contact points. Hardened thrust washers allow the precise control of clearances in order to eliminate backlash. |
|
|
|
|
| |
| Patented sealing system featuring a
TiCN coated shaft surface that eliminates leakage and increases service life to over 30,000 hours. The high tech coating, with a surface quality of
0.2um and hardness of
3700 Hv. Interfaces with our proprietary seal, decreases wear and running temperature. |
|
|

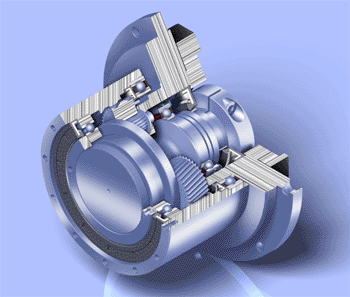

AL Series
