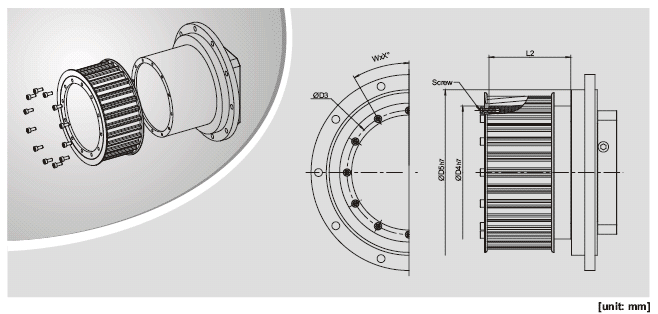

Belt Pulley Designs
|
AL Series |
|
|
|
|
|
|
Dimension
|
AL070 |
AL095 |
AL110 |
AL150 |
AL190 |
AL230 |
AL280 |
| L2 |
36 |
55.5 |
60.5 |
79 |
94 |
115 |
116 |
| D3 |
42 |
61.5 |
78.5 |
110 |
142.5 |
179 |
216 |
| D4h7 |
47.7 |
67.3 |
87.3 |
118.1 |
152.8 |
190 |
229.2 |
| D5h7 |
70 |
95 |
110 |
150 |
190 |
230 |
280 |
| Screw |
M3X0.5P |
M3X0.5P |
M4X0.7P |
M5X0.8P |
M5X0.8P |
M6X1P |
M6X1P |
| W |
6 |
8 |
8 |
8 |
12 |
12 |
12 |
| X |
60 |
45 |
45 |
45 |
30 |
30 |
30 |
|
|
|
