Update:2009/4/22

     1-stage
  AT-C Series

 1-stage( Ratio i = 1 ~ 5 )

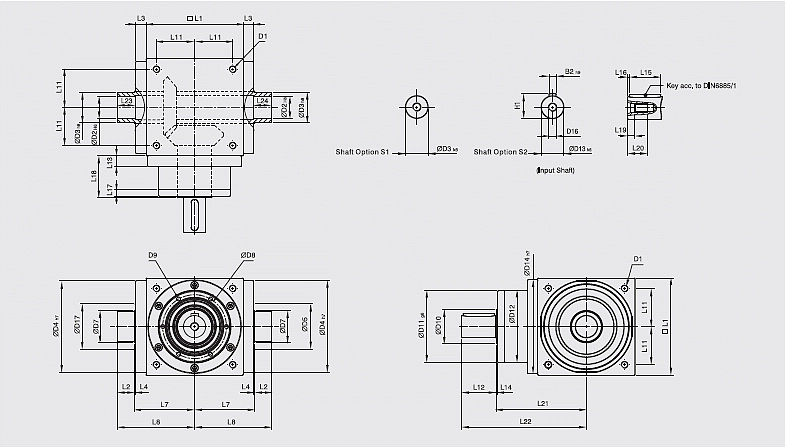

AT-C-S1
  AT065C AT075C AT090C AT110C AT140C AT170C AT210C AT240C AT280C
       D1 M4 M6 M6 M8 M10 M12 M16 M16 M16
       D2 H6 13 14 18 22 32 40 50 55 60
       D3 h8 16 16 22 25 44 50 62 68 75
       D4 h7 63 73 88 108 135 165 205 235 275
       D8 53 62 76 95 92 114 142 160 176
       D9 4xM4xL7 4xM5xL8 4xM5xL8 6xM6xL10 6xM6xL10 6xM8xL12.5 6xM8xL12.5 6xM8xL12.5 6xM10xL15
       D10 15.4 20.4 25.8 35.8 49.8 59.3 79.3 92.3 102.3
       D11 g6 62.9 72.9 87 107 103 127 158 178 198
       D12 62 72 86 106 104 128 160 180 200
       D13 k6 13 16 18 22 32 40 50 55 60
       D14 h7 63 73 88 108 135 165 205 235 275
       D16 M4 M5 M5 M8 M12 M16 M16 M16 M20
       D17 26 26 26 38 61 70 86 86 100
       D18 41 41 50 50 80 90 110 115 138
       L1 65 75 90 110 140 170 210 240 280
       L2 14 14 18 18 24 26 29 29 30.5
       L3 13 14.5 15 15 15 15 20 25 25
       L4 2 2 2 2 2 2 2 2 2
       L7 47.5 54 62 72 87 102 127 147 167
       L8 66 72.5 85 95 116.5 133.5 161.5 181.5 205
       L11 27 30 36 44 55 67 85 95 110
       L12 19.5 30 35 40 50 60 75 85 110
       L13 13 15 15 15 15 15 20 25 25
       L14 2 2 2 2 2 2 2 2 2
       L15 16 25 28 32 45 50 70 80 100
       L16 2 2.5 3.5 4 2.5 5 2.5 2.5 5
       L17 6 8 8 8 10 10 10 10 10
       L18 43 52.5 55 60 60 70 90 105 120
       L19 4.5 4.8 4.8 7.2 10 12 12 12 15
       L20 10 12.5 12.5 19 28 36 36 36 42
       L21 75.5 90 100 115 130 155 195 225 260
       L22 95 120 135 155 180 215 270 310 370
       L23 15 15 20 20 26 28 31 31 32.5
       L24 15 15 20 20 26 28 31 31 32.5
       L25 15 15 19.5 19.5 25.5 27.5 30.5 30.5 32.5
       L26 18.5 18.5 23 23 29.5 31.5 34.5 34.5 38
       B2 h9 5 5 6 6 10 12 14 16 18
       H2 15 18 20.5 24.5 35 43 53.5 59 64
