A Quick Guide to Application of APEX Gearbox

Model Main Feature Application

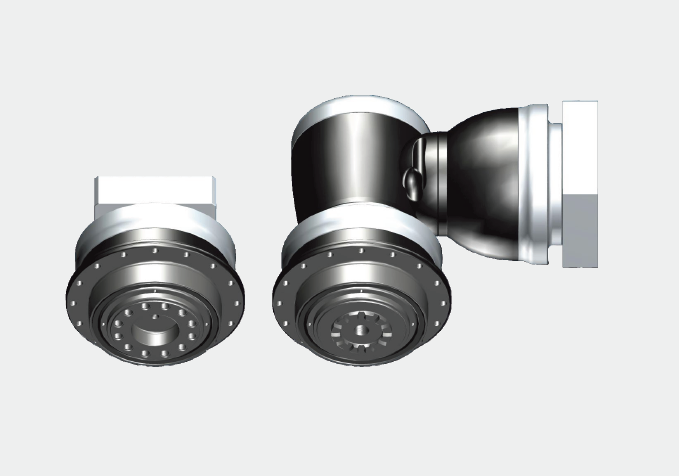

AP / APK
APC / APCK 		Ratio
4 ~ 5,500
  • Extra High Torque
  • High Precision
  • High Torsional Rigidity
  • Long-Term Persistence of Low Backlash
  • Long Service Life
  • High Efficiency / Optimized Inertia Moment
  • Identical Input-Output Rotating Direction with Hypoid Right-Angle K-Series
  • Standard Flange or Curvic Output
  • Measurement Equipment
  • Robots
    Delta Robots
    The 7th Axis of Robots
  • High-End CNC Machine Tools
  • Heavy Duty Automation
    Facility
Best Backlash
≤ 1 arcmin

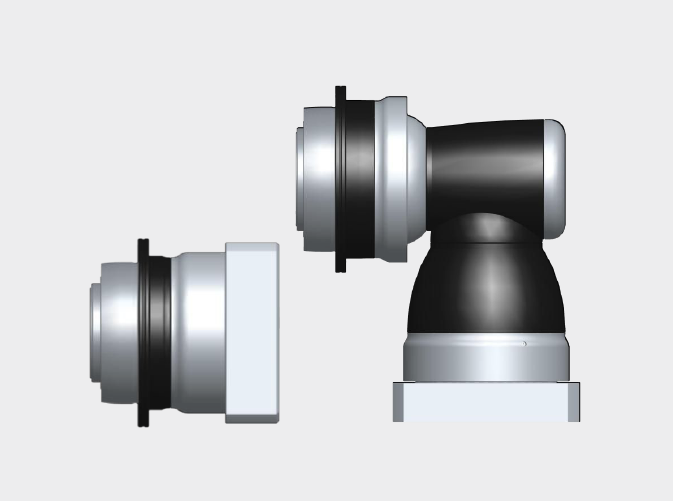

AH / AHK
AFH / AFHK		 Ratio
3 ~ 10,000
  • High Torque
  • High Precision
  • High Torsional Rigidity
  • Long-Term Persistence of Low Backlash
  • Long Service Life
  • High Efficiency / Optimized Inertia Moment
  • Identical Input-Output Rotating Direction with Hypoid Right-Angle K-Series
  • Various Shaft or Flange Output Interfaces
  • Measurement Equipment
  • Robots
    Delta Robots
    The 7th Axis of Robots
  • High-End CNC Machine Tools
  • Heavy Duty Automation
    Facility
Best Backlash
≤ 1 arcmin

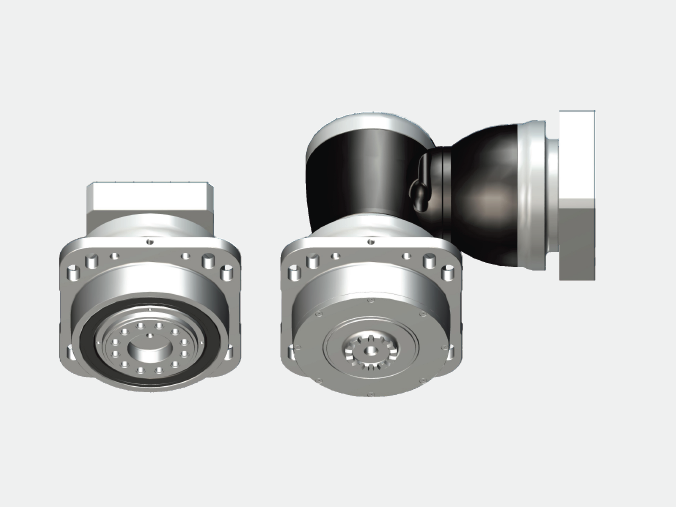

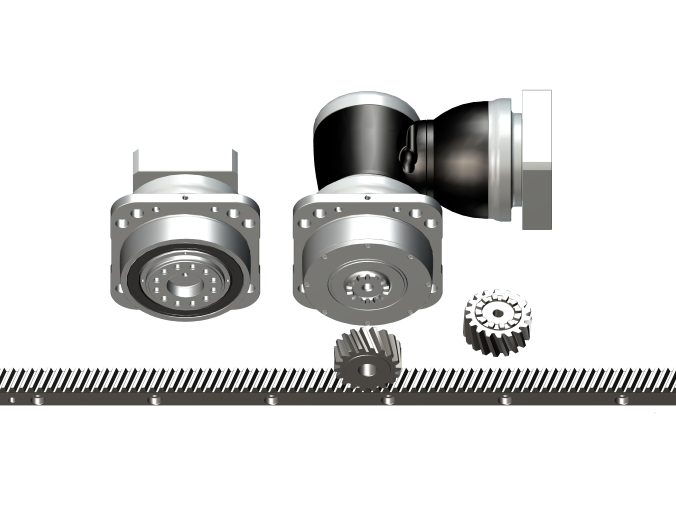

MGH / MGHK
MGHC / MGHCK		 Ratio
4 ~ 5,500
  • Enhanced Axial and Radial Load
  • Easy Installation and Adjustment
  • Extra High Torque
  • High Torsional Rigidity
  • High Precision
  • Long-Term Persistence of Low Backlash
  • Long Service Life
  • High Efficiency / Optimized Inertia Moment
  • Identical Input-Output Rotating Direction with Hypoid Right-Angle K-Series
  • Standard Flange or Curvic Output
  • Optimized for Rack and Pinion Application
Best Backlash
≤ 3 arcmin
MG / MGK Ratio
4 ~ 10,000
  • Enhanced Axial and Radial Load
  • Easy Installation and Adjustment
  • High Torque
  • High Torsional Rigidity
  • High Precision
  • Long-Term Persistence of Low Backlash
  • Long Service Life
  • High Efficiency / Optimized Inertia Moment
  • Identical Input-Output Rotating Direction with Hypoid Right-Angle K-Series
  • Optimized for Rack and Pinion Application
Best Backlash
≤ 3 arcmin

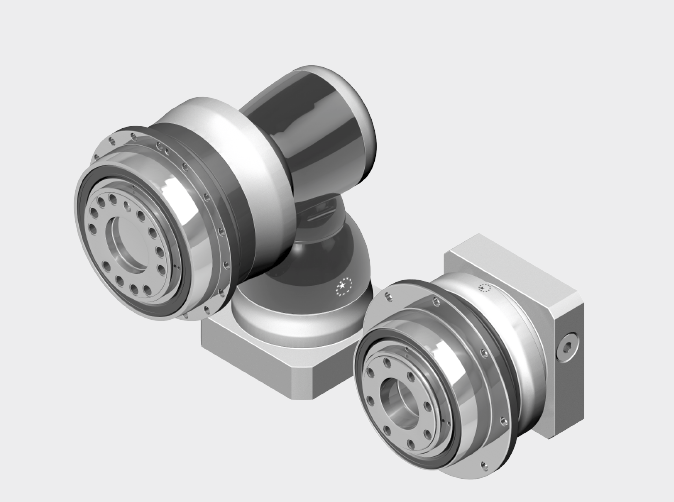

MD / MDK
MF / MFK		 Ratio
3 ~ 10,000
  • High Torque
  • High Torsional Rigidity
  • High Precision
  • Long-Term Persistence of Low Backlash
  • Long Service Life
  • High Efficiency / Optimized Inertia Moment
  • Identical Input-Output Rotating Direction with Hypoid Right-Angle K-Series
  • Robots
  • High-End CNC Machine Tools
  • Heavy Duty Automation
    Facility
Best Backlash
≤ 3 arcmin

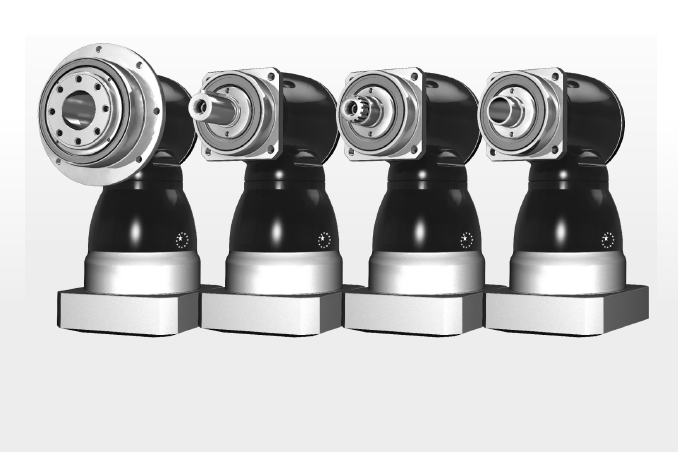

KH / KF Ratio
1 ~ 100
  • High-End Hypoid Right-Angle Gearbox
  • Identical Input-Output Rotating Direction
  • High Precision
  • High Rigidity
  • Long Service Life
  • Various Shaft or Flange Output Interfaces
  • High Ratio Density
  • High Power Density
  • General Automation Facilityy
  • CNC Machine Tools
  • Robots
Best Backlash
≤ 3 arcmin
L Ratio
5, 7
  • With integrated Pinion
  • High Rigidity
  • High Precision
  • Long-Term Persistence of Low Backlash
  • Long Service Life
  • Optimized for Rack and Pinion Application
  • Laser Cutting / Plasma Cutting Machine
Best Backlash
≤ 3 arcmin

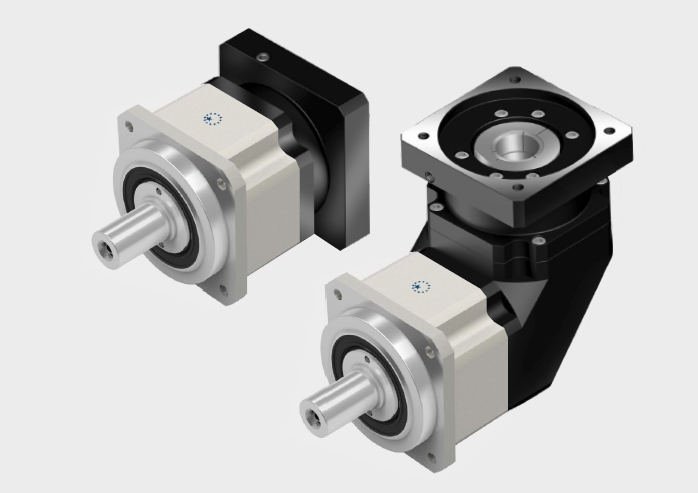

AB / ABR
AF / AFR
AFX / AFXR
AD / ADR		 Ratio
3 ~ 200
  • Stainless Construction
  • Low Backlash
  • Maintenance Free
  • Low Noise
  • Optimized Inertia Moment
  • Long Service Life
  • Various Shaft or Flange Output
  • Bevel-Gear Right-Angle Design
  • Clean Room
  • Electrics Industry
  • Food / Pharmaceutics Industry
  • General Automation Facility
  • CNC Machine Tools
  • Robots
  • Washdown / Outdoor
Best Backlash
≤ 3 arcmin

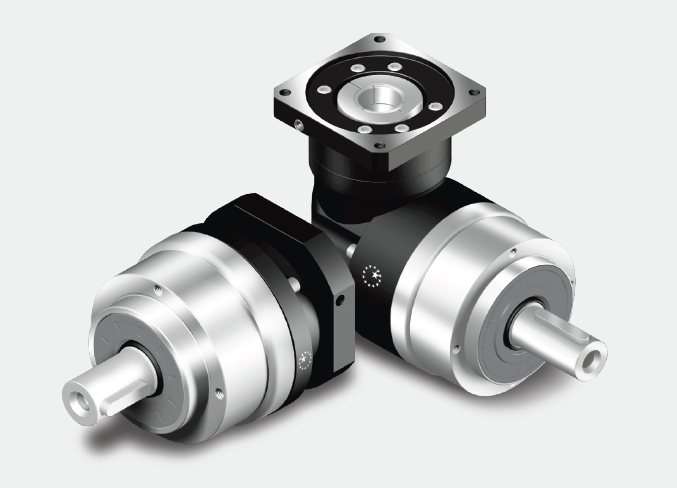

AE / AER Ratio
3 ~ 100
  • Stainless Construction
  • Maintenance Free
  • Low Noise
  • Optimized Inertia Moment
  • Long Service Life
  • Bevel-Gear Right-Angle Design
  • Clean Room
  • Electrics Industry
  • Food / Pharmaceutics Industry
  • General Automation Facility
  • Washdown / Outdoor
Best Backlash
≤ 5 arcmin
AES / AERS Ratio
3 ~ 200
  • Full-Stainless Construction
  • Maintenance Free
  • Low Noise
  • Optimized Inertia Moment
  • Long Service Life
  • Bevel-Gear Right-Angle Design
  • Clean Room
  • Electrics Industry
  • Food / Pharmaceutics Industry
  • General Automation Facility
  • Washdown / Outdoor
Best Backlash
≤ 5 arcmin
GL Ratio
2 ~ 90
  • Rotating Housing Design
  • Enhanced Axial and Radial Load
  • High Rigidity
  • Optimized for Pulley Drive and AGV Wheel Drive
Best Backlash
≤ 6 arcmin

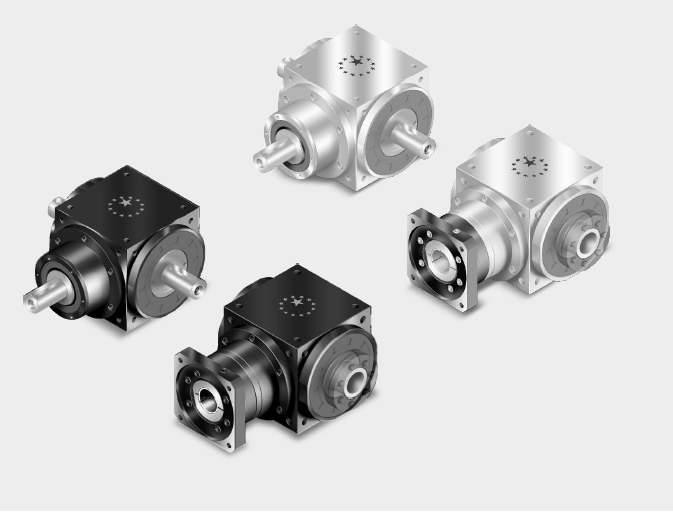

AT / ATB Ratio
1 ~ 500
  • Stainless Construction (optional)
  • Bevel-Gear Right-Angle Design
  • High Rigidity
  • High Precision Installation
  • Electrics Industry / Clean Room
  • Food / Pharmaceutics Industry
  • General Automation Facility
  • CNC Machine Tools
  • Washdown / Outdoor
Best Backlash
≤ 6 arcmin

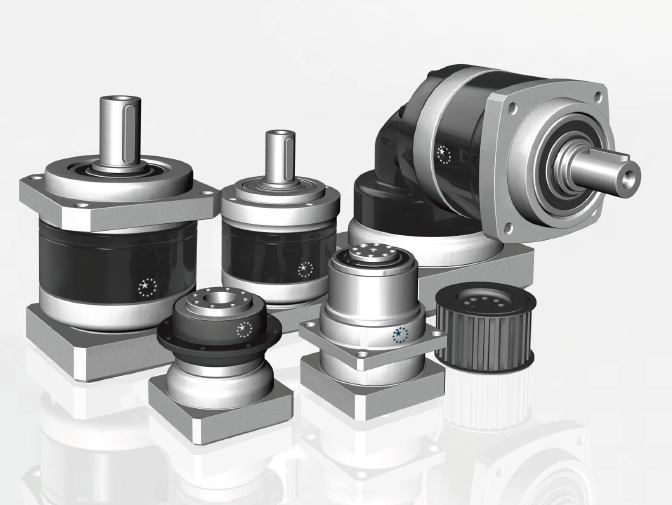

PAII / PAIIR
PEII / PEIIR
PGII / PGIIR
PSII / PSIIR
PD / PDR
PL / PLR 		Ratio
3 ~ 1,000
  • Economic Design
  • High Efficiency / Optimized Inertia Moment
  • Minimized Size and Weight
  • Limited Temperature Rise
  • Long Service Life
  • Bevel-Gear Right-Angle Design
  • General Automation Facility
  • Robots
  • More suitable for Continuous Operation
Best Backlash
≤ 6 arcmin
